Description

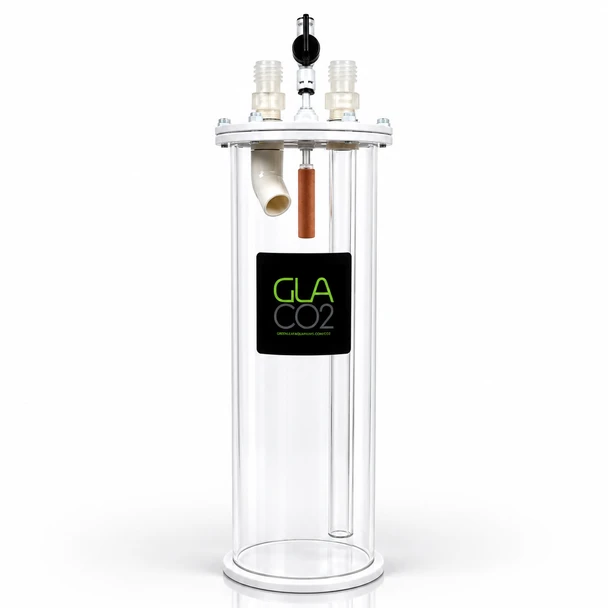

GLA PRO-CO2 Atomizing Reactor 5L
The GLA PRO-CO2 Atomizing Reactor 5L combines ultra-fine ceramic CO2 atomization with a large external dissolution chamber to improve CO2 utilization and reduce gas accumulation in planted aquarium systems.
Unlike conventional reactors that primarily rely on waterflow and contact time to dissolve larger gas bubbles, the PRO-CO2 Reactor first atomizes CO2 into a fine mist. The reactor chamber then provides additional contact time for dissolution before water returns to the aquarium.
The result is efficient CO2 delivery with reduced visible microbubbles, less gas pocketing, and no in-tank diffuser required.
At a Glance
- Reactor Design: 5-liter hybrid ceramic atomizing reactor
- Installation: External filter return line
- Typical Working Pressure: Approximately 20–25 PSI
- Recommended Waterflow: Minimum approximately 300 GPH; typical operating range 400–1200 GPH+
- Included Adapters: 12mm, 16mm, 20mm, and 1"
- Dimensions: Approximately 20" tall × 6" diameter
- Construction: Clear acrylic chamber with enlarged internal flow path
- CO2 Connection: Push-connect fitting
- Maintenance: Removable, replaceable ceramic atomizer
- Power: No separate electrical connection required for the reactor
Best For
- Planted aquariums using compatible external filtration or return pumps
- Aquarists seeking efficient CO2 dissolution with less visible mist inside the aquarium
- Medium to large planted aquariums and higher-demand CO2 installations with adequate filtration flow
- Aquarium installations where an in-tank diffuser is not preferred
- High-flow filtration systems requiring flexible tubing adapters and a serviceable reactor design
The reactor's suitability depends primarily on available waterflow, plumbing compatibility, and CO2 demand rather than aquarium size alone.
Beyond Conventional CO2 Reactors
Innovative Engineering. Exceptional CO2 Dissolution.
The GLA PRO-CO2 Atomizing Reactor 5L represents a different approach to aquarium CO2 delivery. Rather than simply introducing gas into a chamber and relying on waterflow to dissolve it, GLA combines two complementary technologies: ultra-fine ceramic atomization and high-capacity reactor dissolution. The result is a sophisticated hybrid system engineered to make more effective use of every bubble of CO2.
What makes this reactor different is how its components work together. A precision ceramic atomizer breaks CO2 into an exceptionally fine mist before it enters the spacious 5-liter dissolution chamber. This dramatically increases the surface area available for gas exchange, helping CO2 dissolve efficiently while reducing the gas accumulation, visible microbubbles, and wasted injection associated with less efficient systems.
Innovation extends beyond the atomizer. An enlarged internal flow path supports powerful filtration systems, while the removable ceramic assembly, replaceable components, and versatile connection options make the reactor practical to maintain and adaptable to different installations. Every major feature has a purpose: better CO2 utilization, efficient water movement, straightforward servicing, and dependable long-term operation.
For aquarists who invest in quality lighting, filtration, and fertilization, CO2 delivery deserves the same attention. The PRO-CO2 Atomizing Reactor is more than an alternative to a conventional diffuser or reactor. It's an investment in a thoughtfully engineered CO2 delivery system designed to bring greater efficiency, refinement, and control to the planted aquarium.
Filter Compatibility & Installation
The GLA PRO-CO2 Reactor installs externally on the return line of a compatible canister filter or dedicated circulation system. It must receive adequate waterflow to operate effectively.
Correct Installation: Canister Filter → PRO-CO2 Reactor → Aquarium Return
Important: Install the reactor on the filter return line only. Do not install it on the filter intake line.
The included 12mm, 16mm, 20mm, and 1" adapter sets accommodate a variety of filtration connections, including many Fluval FX Series installations when the appropriate fittings are used.
Confirm your actual tubing and connection dimensions before installation. Each adapter must be fitted with its matching silicone O-ring to provide a proper water-tight seal.
Allow sufficient cabinet space for the reactor's height, plumbing, and maintenance access.
Initial Setup & Priming
Proper installation and priming are important for removing trapped air and establishing normal water circulation through the reactor. The chamber must be completely filled with water before CO2 injection begins.
- Select the Correct Adapters: Choose the included adapter size appropriate for your filtration system. Confirm that the matching clear silicone O-rings are properly seated beneath the adapters.
- Install the Reactor: With filtration turned off, connect the reactor to the filter return line. Connect the filter outflow to the reactor water inlet and the reactor outlet to the aquarium return line.
- Connect the CO2 Supply: Insert CO2-resistant tubing fully into the push-connect fitting on top of the reactor. Install a compatible check valve between the regulator and reactor. Keep CO2 injection turned off during priming.
- Prepare for Priming: With filtration still off, loosen one reactor lid screw approximately one to two turns. Do not remove the screw. Place a towel beneath the reactor to collect water released during priming.
- Fill and Vent the Reactor: Start the filtration system and allow the chamber to fill with water. Trapped air will escape through the loosened screw location.
- Complete Priming: Continue until water begins to flow from the loosened screw location. Allow a small amount of water to overflow to help remove remaining air, then hand-tighten the screw. Keep escaping water away from electrical equipment.
- Inspect for Leaks: Check the reactor lid, adapters, tubing connections, and fittings. Confirm the chamber is filled and all connections are secure before beginning CO2 injection.
- Begin CO2 Injection: Set the regulator to the appropriate working pressure, typically 20–25 PSI for GLA PRO-CO2 reactors. Begin with a conservative CO2 flow rate and make gradual adjustments according to aquarium conditions.
Important: Reactor lid screws are designed for hand tightening only. Never use screwdrivers, drills, pliers, power tools, or excessive force. Overtightening can damage the screws, threads, O-rings, or acrylic components.
Lid Screw Precaution: The reactor lid screws are designed for hand tightening only. Do not use screwdrivers, drills, pliers, or excessive force. Overtightening can damage the screws, threads, seals, or acrylic components.
Working Pressure, Waterflow & CO2 Adjustment
GLA PRO-CO2 reactors, including standard and atomizing configurations, typically operate at approximately 20–25 PSI. Actual settings may vary according to the installation and operating conditions.
The reactor has a recommended minimum waterflow of approximately 300 GPH, with a typical operating range of 400–1200 GPH or greater. Actual waterflow through a filter can be lower than its advertised pump rating due to tubing, filter media, plumbing, and installation resistance.
Working pressure and CO2 injection rate are separate adjustments. Set sufficient working pressure for atomizer operation, then use the regulator's precision needle valve to control the amount of CO2 being injected.
When switching from another diffuser or reactor, begin with a conservative bubble rate. More efficient dissolution can change the amount of CO2 available to the aquarium even when the bubble count remains the same.
Make gradual adjustments while monitoring your drop checker, aquarium circulation, and livestock. A drop checker responds with a delay and should not be treated as a real-time safety indicator.
For more information, see our CO2 Working Pressure & Flow Guide.
Cleaning & Maintenance
The removable ceramic atomizer allows routine cleaning and replacement without requiring a new reactor assembly.
Over time, algae, biofilm, or mineral deposits may restrict the ceramic membrane and reduce fine-bubble production. Clean the atomizer using methods appropriate for its materials and follow the supplied maintenance instructions.
During maintenance, also inspect:
- Ceramic atomizer condition
- Internal standpipe and flow passages
- Lid seal and adapter O-rings
- Tubing connections and fittings
- Acrylic chamber and lid for damage
Always stop CO2 injection, isolate the water circulation, and relieve any remaining pressure before opening or servicing the reactor.
After reassembly, restore waterflow, prime the reactor as needed, and inspect all connections for leaks before resuming normal operation.
Specifications
- Model: GLA PRO-CO2 Atomizing Reactor 5L
- Reactor Chamber Capacity: 5 Liters
- Construction: Acrylic
- Height: Approximately 20"
- Diameter: Approximately 6"
- Diffusion Technology: Removable ceramic atomizer with external dissolution chamber
- Working Pressure: Typically 20–25 PSI
- Minimum Recommended Waterflow: Approximately 300 GPH
- Typical Operating Flow: 400–1200 GPH+
- Installation: External filter return line
- CO2 Connection: Push-connect fitting
- Included Adapter Sizes: 12mm, 16mm, 20mm, and 1"
- Additional Power: Not required when operated using an existing compatible filtration system
What's Included
- GLA PRO-CO2 Atomizing Reactor 5L
- Installed removable ceramic atomizer
- 12mm adapter set
- 16mm adapter set
- 20mm adapter set
- 1" adapter set
- Matching clear silicone O-rings
- Installation and maintenance guide
Required Separately: A compatible pressurized CO2 system, CO2-resistant tubing, and an external filter or circulation pump capable of providing sufficient waterflow. A compatible CO2 check valve is recommended and sold separately.
Frequently Asked Questions
How does this reactor differ from a conventional CO2 reactor? The PRO-CO2 Atomizing Reactor uses a ceramic membrane to create fine CO2 bubbles before they enter the dissolution chamber. This increases gas-to-water contact and helps improve dissolution compared with conventional large-bubble reactor designs.
Will I still need an in-tank CO2 diffuser? No. The reactor introduces CO2 externally through the filter return line, so a separate in-tank diffuser is not required.
Will I see CO2 bubbles in the aquarium? The reactor is designed to reduce undissolved CO2 and visible mist. Some microbubbles may still be present depending on waterflow, CO2 injection rate, and system configuration.
Does the reactor eliminate gas accumulation? The hybrid atomizing design helps reduce gas pocketing, but small amounts of gas may still accumulate under certain operating conditions. Persistent gas pockets may indicate insufficient waterflow, excessive CO2 injection, or trapped air requiring attention.
Is the reactor compatible with Fluval FX Series filters? The included 1" adapter set supports many Fluval FX Series installations. Confirm the specific filter's tubing and connection dimensions before ordering.
Can I clean or replace the ceramic atomizer? Yes. The atomizer is removable for cleaning, inspection, and replacement. The entire reactor does not need to be replaced for routine atomizer servicing.
Does the reactor require an additional pump? Not when your existing compatible filtration system provides adequate waterflow. The reactor does not contain a motor or require its own electrical connection.
Is a CO2 check valve included? No. A compatible check valve is recommended to help prevent water backflow toward the CO2 regulator and is sold separately.
Pre-Sales & Shipping Information
GLA CO2 reactors are non-returnable. For questions about filter compatibility, tubing adapters, installation, or reactor operation, please contact GLA before purchasing.
