Description

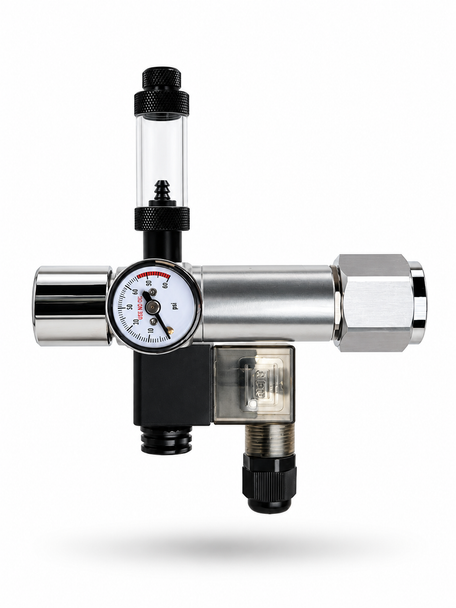

GLA DS-Mini Dual Stage CO2 Regulator (Modular) (DIN477)
The GLA DS-Mini Dual Stage CO2 Regulator (DIN477) is a compact, professional-grade regulator designed for international planted aquarium CO2 installations where space, precision, pressure stability, and modular flexibility are priorities.
Built around GLA’s compact dual-stage regulator architecture, the DS-Mini DIN477 combines two-stage pressure regulation with a modular manifold system that can be configured for one aquarium or expanded to independently control multiple aquariums from a single CO2 cylinder. Each regulator is individually inspected, pressure tested, and leak checked in the USA prior to shipment.
At a Glance
- Pressure Regulation: Dual-stage
- Cylinder Connection: DIN477 international CO2 cylinder configuration
- Regional Options: AU, EU, or UK configuration selectable at purchase
- Pressure Monitoring: Integrated working-pressure gauge
- Output Pressure Range: 0–60 PSI
- CO2 Distribution: Modular 1–6 aquarium configuration
- Independent Control: Precision needle valve and bubble counter for each manifold output
- Automation: Integrated electric solenoid
- Warranty: GLA Limited Lifetime Warranty
Best For
- International planted aquarium CO2 installations
- Aquarists seeking compact dual-stage CO2 regulation
- Single planted aquariums with future expansion in mind
- Multi-aquarium CO2 installations
- Installations where cabinet space and equipment footprint are important
- Hobbyists who want independently adjustable CO2 outputs
- Long-term planted aquarium setups where modular scalability is a priority
The DS-Mini is not limited to a particular aquarium size or experience level. It is designed for both beginner and experienced aquarists who prefer compact dual-stage architecture with the ability to expand their CO2 system over time.
Why Choose the GLA DS-Mini DIN477?
The DS-Mini DIN477 combines the pressure-regulation advantages of a dual-stage design with a compact footprint, modular CO2 distribution, and an international cylinder configuration.
- Compact Dual-Stage Design: Premium pressure regulation in a space-efficient platform
- International Configuration: Designed for compatible DIN477 CO2 cylinder installations outside the United States
- Regional Options: AU, EU, and UK configurations available at purchase
- Modular Manifold System: Configure the regulator for one aquarium or expand to as many as six independently controlled outputs
- Precision CO2 Adjustment: Each manifold block includes its own precision needle valve
- Integrated Flow Monitoring: Each manifold block includes a bubble counter for convenient visual CO2 monitoring
- Automatic Operation: Integrated solenoid allows CO2 injection to be controlled with a timer or compatible controller
- System Protection: Integrated pressure relief valve provides an additional level of protection
Compact Dual-Stage Pressure Regulation
Dual-stage regulators reduce cylinder pressure through two separate pressure-reduction stages. This architecture is designed to provide increased working-pressure stability as cylinder pressure changes over time and to reduce the likelihood of pressure increases as the CO2 cylinder approaches depletion.
The DS-Mini provides these dual-stage pressure-regulation benefits in a compact form factor designed for planted aquarium installations where equipment space may be limited.
- Two-stage pressure reduction
- Stable and controllable working pressure
- Reduced likelihood of end-of-tank pressure spikes
- Compact architecture for space-conscious installations
International Cylinder Compatibility
The DS-Mini DIN477 is designed for compatible international CO2 cylinder installations and is offered in AU, EU, and UK regional configurations.
CO2 cylinder valve standards may vary by country, cylinder supplier, and cylinder type. Please verify that your local CO2 cylinder connection is compatible with the selected regulator configuration before ordering.
If you are unsure which regional configuration is appropriate for your cylinder, please contact GLA prior to purchase for compatibility assistance.
Precision Control & Automation
Each DS-Mini manifold output includes an independently adjustable precision needle valve and integrated bubble counter, allowing CO2 flow to be tuned separately for each connected aquarium.
The integrated electric solenoid allows CO2 injection to be automatically coordinated with the aquarium photoperiod using a standard timer or compatible controller.
The integrated working-pressure gauge provides a clear visual reference for regulator output pressure. The DS-Mini uses a single gauge dedicated to working pressure rather than separate working-pressure and cylinder-pressure gauges.
Bubble rate should be treated as an aquarium-specific reference rather than a universal measurement of dissolved CO2. Actual CO2 requirements vary with aquarium volume, plant mass, lighting, circulation, diffusion efficiency, and surface agitation.
Modular Manifold System
The DS-Mini modular manifold allows the regulator to grow with your aquarium setup. Select the number of manifold blocks required for your current installation, then add compatible blocks later if additional aquariums are added.
- 1 Block: 1 independently controlled aquarium
- 2 Blocks: 2 independently controlled aquariums
- 3 Blocks: 3 independently controlled aquariums
- 4 Blocks: 4 independently controlled aquariums
- 5 Blocks: 5 independently controlled aquariums
- 6 Blocks: 6 independently controlled aquariums
Each manifold block includes its own precision needle valve and integrated bubble counter, allowing every aquarium to be adjusted independently while sharing a single regulator and CO2 cylinder.
View GLA Modular Manifold Expansion Blocks
Engineering & Performance
- Dual-Stage Pressure Regulation: Two-stage architecture designed for increased working-pressure stability
- Laser-Precision Metal-on-Metal Valve Seat: Engineered for consistent regulation and long-term operation
- Precision Needle Valves: Independent fine adjustment for each manifold output
- Integrated Bubble Counters: Visual CO2 flow monitoring for each connected aquarium
- Integrated Working-Pressure Gauge: Provides a visual reference for regulator output pressure
- Integrated Pressure Relief Valve: Provides additional system protection
- Premium Pneumatic Components: Selected for precision, reliability, and long-term performance
- USA Inspection & Testing: Each regulator is pressure tested and leak checked prior to shipment
Specifications
- Installation: DIN477 international CO2 cylinder configuration
- Regional Configuration: AU, EU, or UK option selected at purchase
- Pressure Reduction: Dual-stage
- Pressure Monitoring: Integrated working-pressure gauge
- Output Pressure Range: 0–60 PSI
- CO2 Distribution: Modular 1–6 aquarium configuration
- Output Control: Independent precision needle valve for each manifold block
- Flow Monitoring: Integrated bubble counter for each manifold block
What’s Included
- GLA DS-Mini Dual Stage CO2 Regulator (DIN477)
- Selected modular manifold configuration
- Precision needle valve for each selected manifold output
- Integrated bubble counter for each selected manifold output
- Integrated electric solenoid
- Integrated working-pressure gauge
- GLA OEM CO2 tank seal
Please Note: A compatible CO2 cylinder, CO2-resistant tubing, and compatible diffusers, atomizers, or reactors are required to complete the CO2 installation and are sold separately.
Frequently Asked Questions
What makes the DS-Mini different from the PRO-DS?
Both the DS-Mini and PRO-DS use dual-stage pressure regulation and modular manifold systems. The DS-Mini is designed around a more compact architecture with a 0–60 PSI output range and a single working-pressure gauge. The PRO-DS is GLA’s full-size dual-stage platform with a 0–140 PSI output range, separate cylinder and working-pressure gauges, and expanded capability for higher-pressure applications.
What CO2 cylinders does the DS-Mini DIN477 fit?
The regulator is designed for compatible international DIN477 CO2 cylinder installations. AU, EU, and UK regional configurations are available. Because cylinder valve standards can vary by country and supplier, verify compatibility with your CO2 cylinder before ordering.
Can this regulator be used with a USA CGA-320 CO2 cylinder?
No. This listing is configured for international DIN477-style CO2 cylinder installations. For standard USA CGA-320 cylinders, select the CGA-320 version of the GLA DS-Mini.
Can the DS-Mini run more than one aquarium?
Yes. The DS-Mini can be configured with one to six manifold blocks. Each block provides one independently adjustable CO2 output with its own precision needle valve and bubble counter.
Can I expand the manifold later?
Yes. Compatible manifold blocks can be added as your aquarium system grows. When expanding an existing regulator, be sure to select the manifold generation that matches your regulator because G2 and G3 manifold blocks are not cross-compatible.
What is the benefit of dual-stage regulation?
Dual-stage regulation reduces cylinder pressure through two stages rather than one, providing additional working-pressure stability as cylinder pressure changes and reducing the likelihood of end-of-tank pressure increases.
Does the DS-Mini display CO2 cylinder pressure?
No. The DS-Mini uses a single gauge to monitor regulator working pressure. Aquarists who prefer separate gauges for cylinder pressure and working pressure may consider the GLA PRO-DS platform.
Can I use a diffuser, inline atomizer, or CO2 reactor with the DS-Mini?
Yes. The adjustable 0–60 PSI output supports many planted aquarium CO2 delivery methods when operated within the pressure and flow requirements of the selected diffuser, atomizer, or reactor.
What size aquarium can I use the DS-Mini on?
The DS-Mini is not restricted to a specific aquarium volume. Appropriate CO2 delivery depends on plant demand, lighting, circulation, diffusion method, surface agitation, and overall system configuration. The DS-Mini may be used on both small and large planted aquariums when configured appropriately.
Is the DS-Mini suitable for beginners?
Yes. Dual-stage regulators are not inherently more difficult to operate during normal aquarium use. The DS-Mini is suitable for both beginner and experienced aquarists who want compact dual-stage pressure regulation and future modular expansion capability.
Choosing the Right GLA CO2 Platform
The GLA GRO DIN477 is our streamlined international single-stage platform for aquarists seeking compact, precise CO2 control. The DS-Mini DIN477 combines dual-stage pressure regulation with a compact modular design, while the international PRO-DS platform provides full-size dual-stage architecture with expanded pressure range, dual-gauge instrumentation, and modular configuration options.
Each platform is designed for a different installation style and level of system flexibility.
Compare GLA CO2 Regulators & Systems
GLA CO2 Equipment
Green Leaf Aquariums specializes in planted aquarium CO2 equipment engineered around precision, reliability, and long-term performance. GLA regulator systems are built specifically for the demands of nature aquariums and high-tech planted aquarium environments.
Each GLA regulator is individually inspected and tested in the USA prior to shipment to help ensure dependable operation and consistent performance.
Support & Warranty
Return Policy: Due to the technical nature of pressurized aquarium CO2 equipment, this item is non-returnable and non-refundable. Qualifying defects remain covered under the GLA Limited Lifetime Warranty and are handled separately through warranty support. Please contact GLA prior to ordering if you need assistance with product selection, installation, or compatibility.
- Limited Lifetime Warranty: Regulator covered against qualifying defects in materials and workmanship
- Lifetime Support: Expert assistance available
- Installation Guidance: We’re here to help you get started
Limited Lifetime Warranty: GLA CO2 regulators are covered by a limited lifetime warranty against defects in materials and workmanship for the original purchaser. This warranty is non-transferable and applies only when the product is used in accordance with Green Leaf Aquariums, LLC (GLA) guidelines and standard operating practices.
Warranty coverage applies only to products purchased directly from greenleafaquariums.com or authorized sales channels. Proof of purchase is required for warranty claims.
This warranty does not guarantee product performance for the lifetime of the purchaser. Product lifespan may vary based on usage, installation, maintenance, and operating conditions.
- Coverage applies only to manufacturing defects under normal use
- GLA reserves the right to repair, replace, or issue store credit at its sole discretion
- If a product is discontinued, a comparable replacement or credit may be provided based on product condition and age
Warranty Exclusions:
- Improper installation, misuse, neglect, or accidental damage
- Use of improper tools, fittings, or excessive force
- Modifications, alterations, or unauthorized repairs
- Damage caused by contamination, corrosion, or improper gas supply
- Normal wear, cosmetic wear, or external damage that does not affect normal functionality
Important: A wrench should only be used to secure the regulator to the CO2 cylinder. Damage resulting from improper use of tools, excessive force, or incorrect installation methods is not covered under this warranty.
GLA is not responsible for damage caused by improper installation or use. However, repair services and support may be available for a fee.
CO2 cylinders, tubing, cartridges, and other consumable or accessory items are not covered under the regulator warranty unless otherwise specified.
For complete warranty coverage, exclusions, claim requirements, and terms, please review our Shipping, Returns & Warranty Policy.
